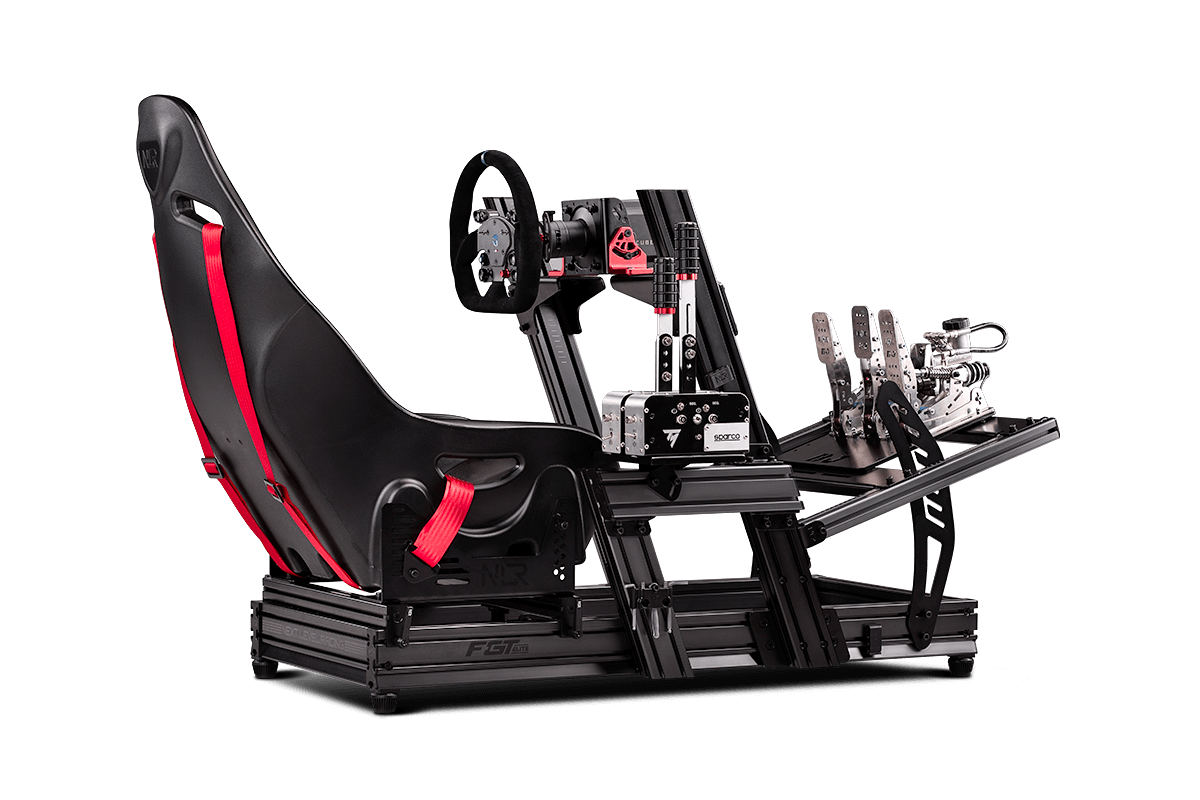

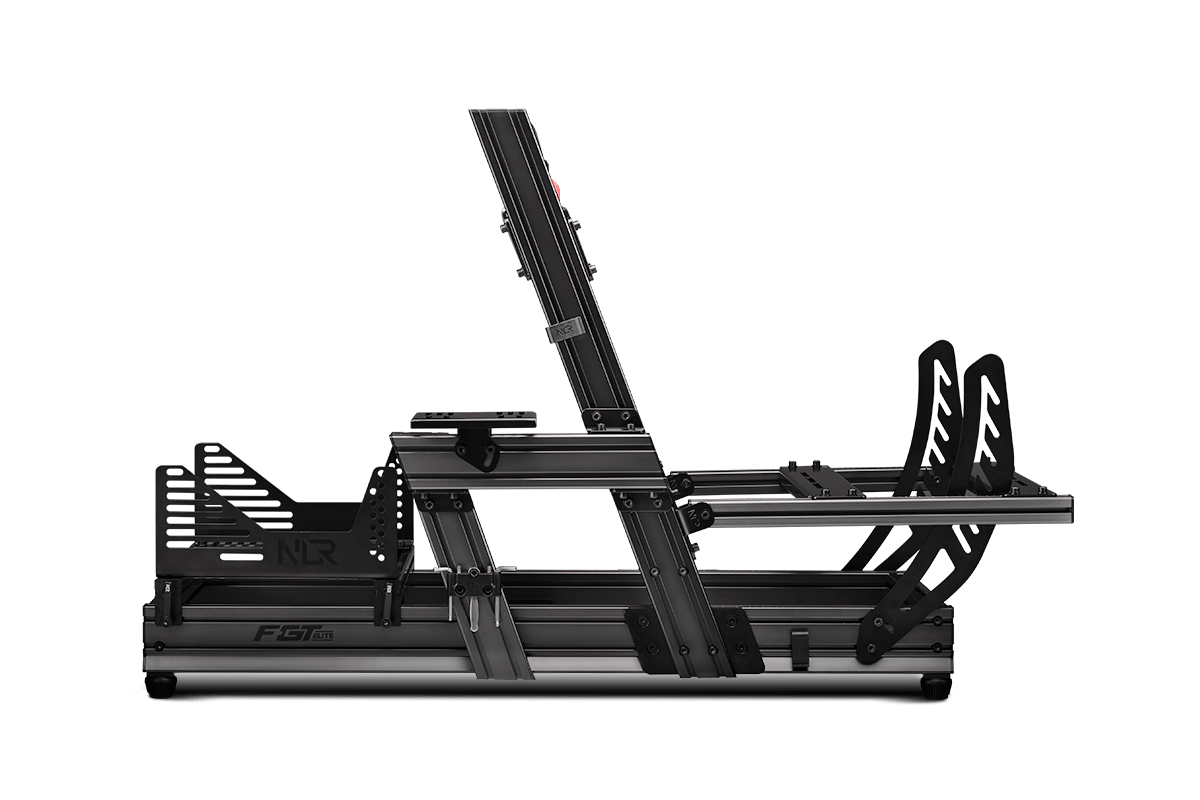

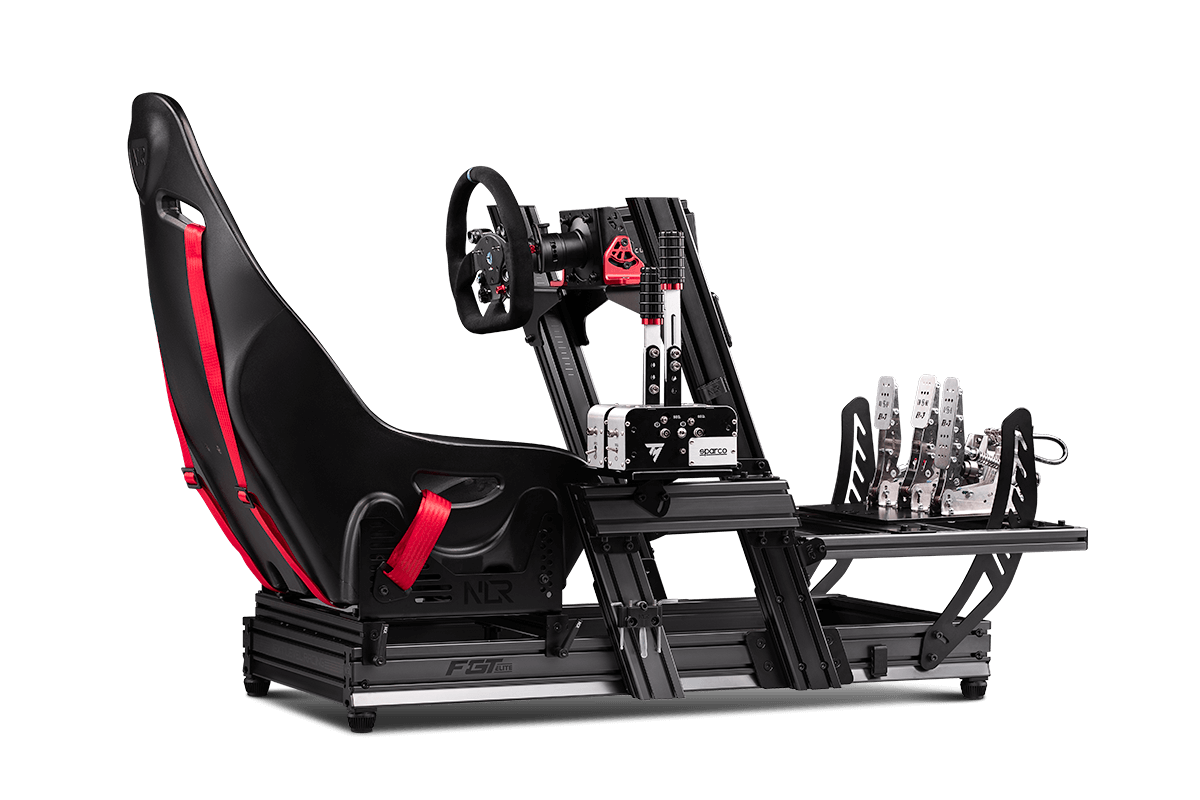

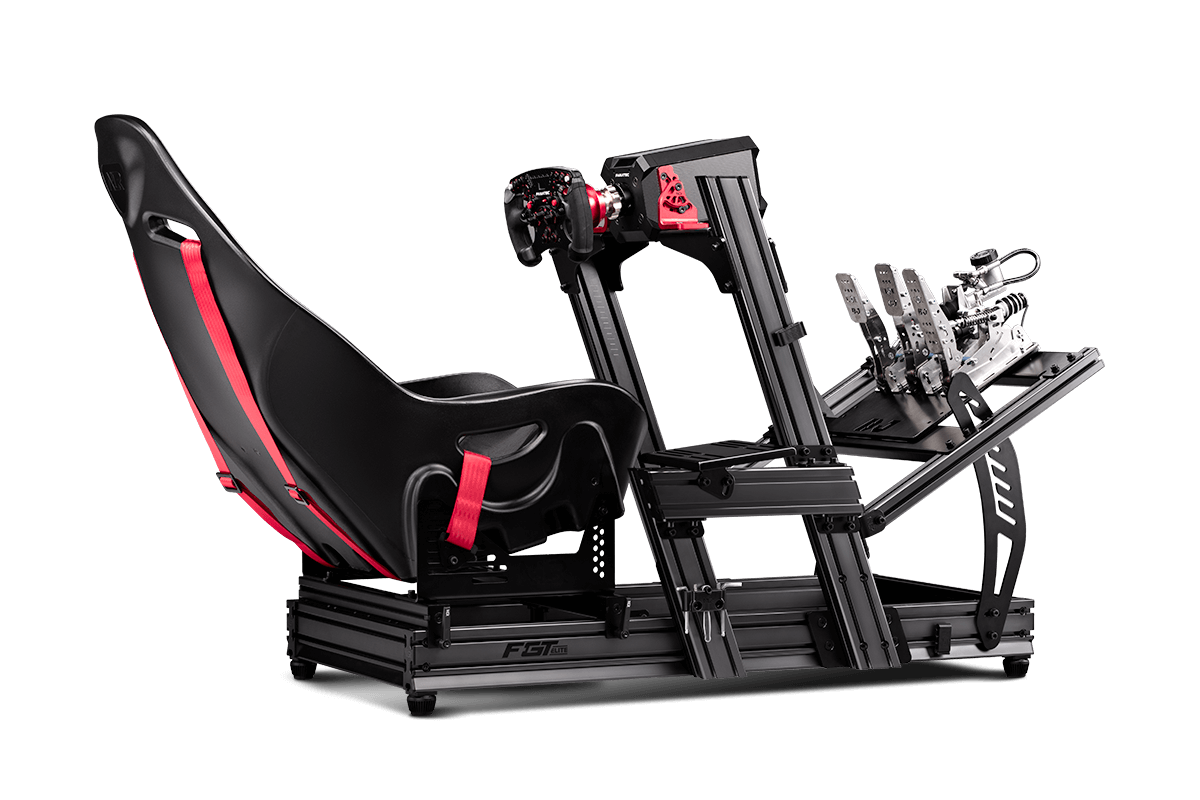

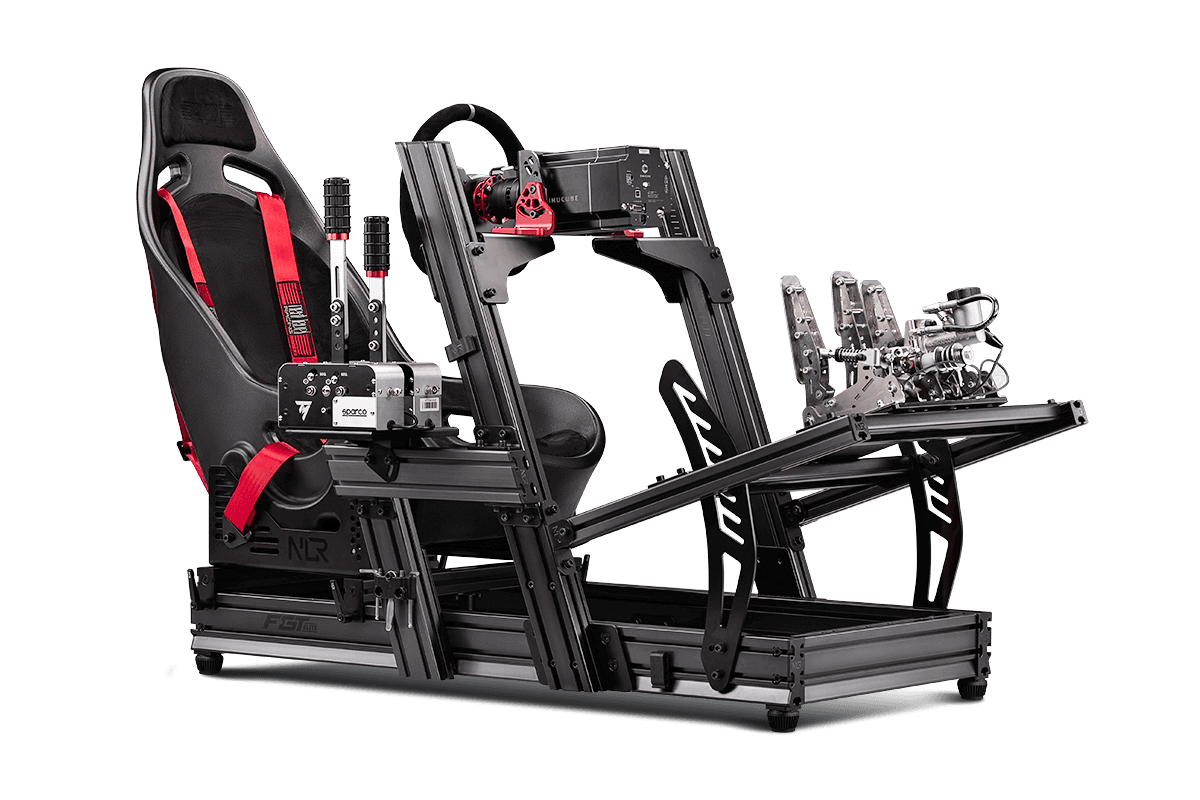

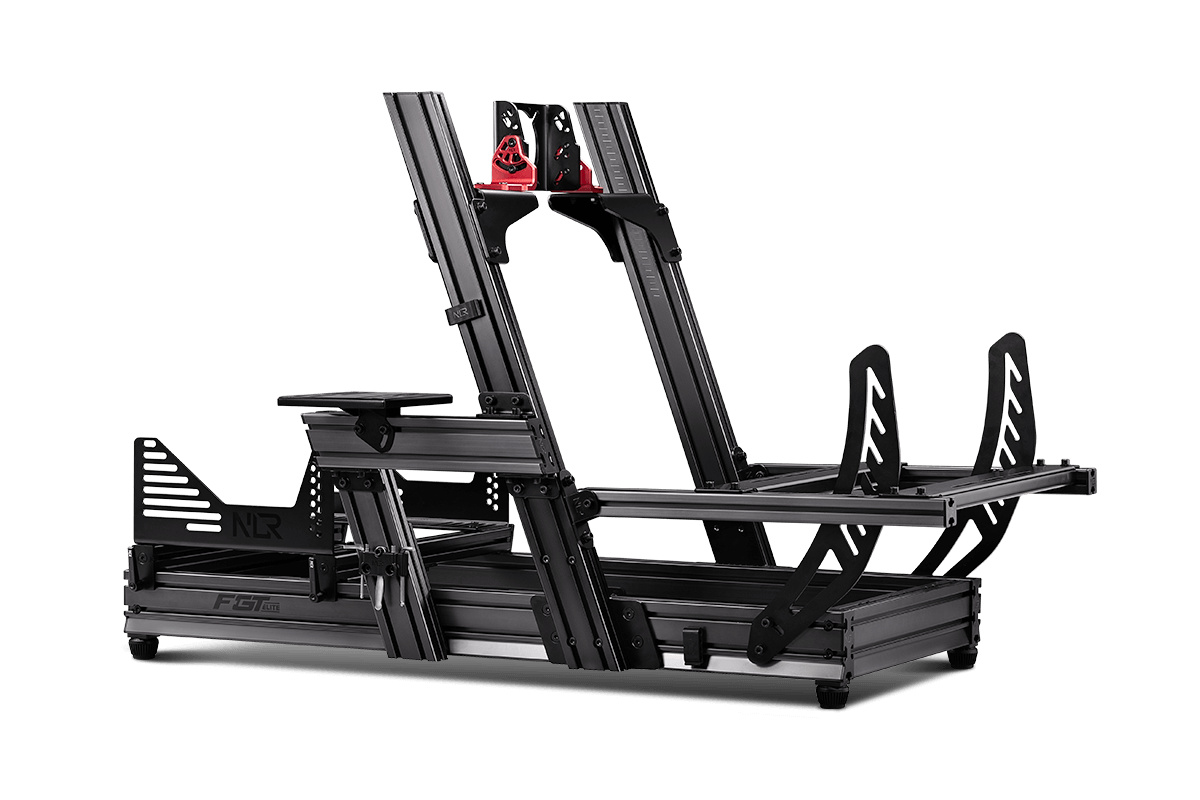

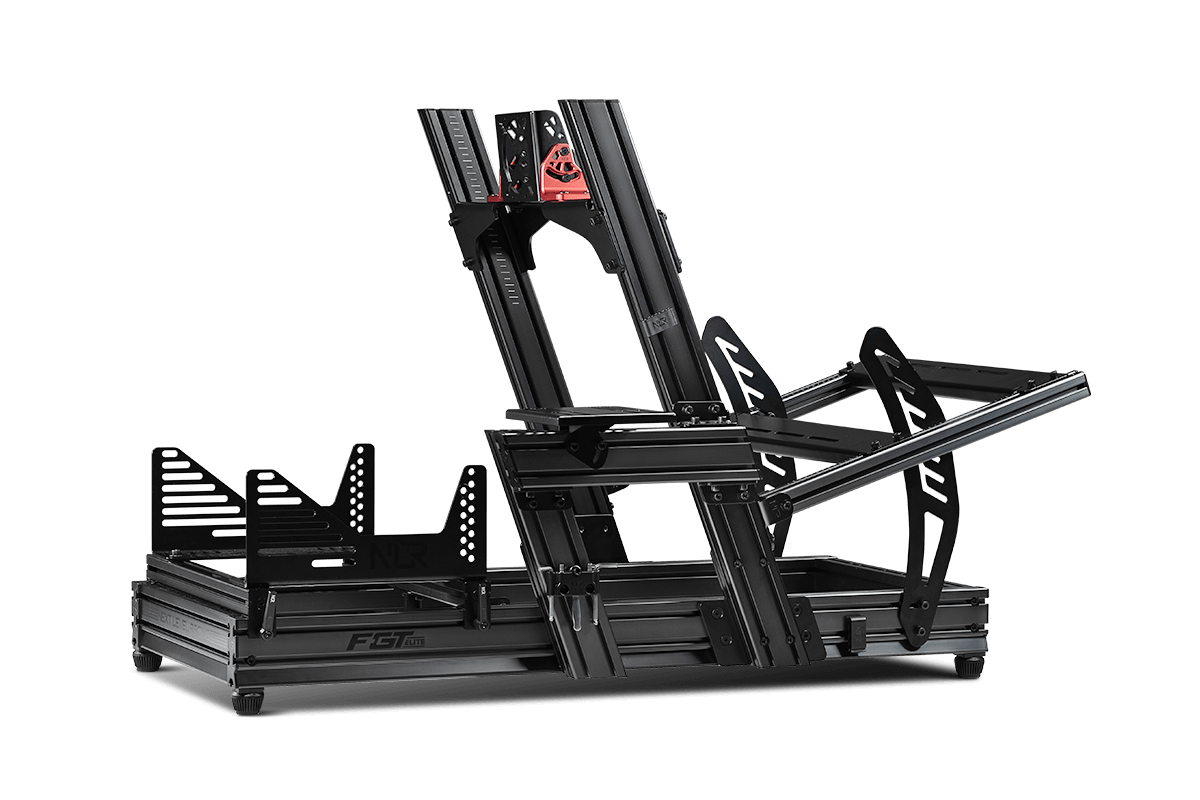

Next Level Racing® F-GT Elite Front & Side Mount Edition

Product Overview

The Next Level Racing® F-GT Elite Front & Side Mount Edition is the definitive choice for racers who demand the ultimate in rigidity and versatility. Specifically engineered for high-end Direct Drive (DD) wheelbases, this "8020" style aluminum profile cockpit eliminates the compromises found in standard industrial rigs. By utilizing custom-milled components and a specialized 100mm x 40mm thick-walled base profile, it provides a rock-solid, zero-flex foundation for professional training, esports, and competitive sim racing across Formula, GT, Hybrid, Truck, and Tank disciplines.

Key Features

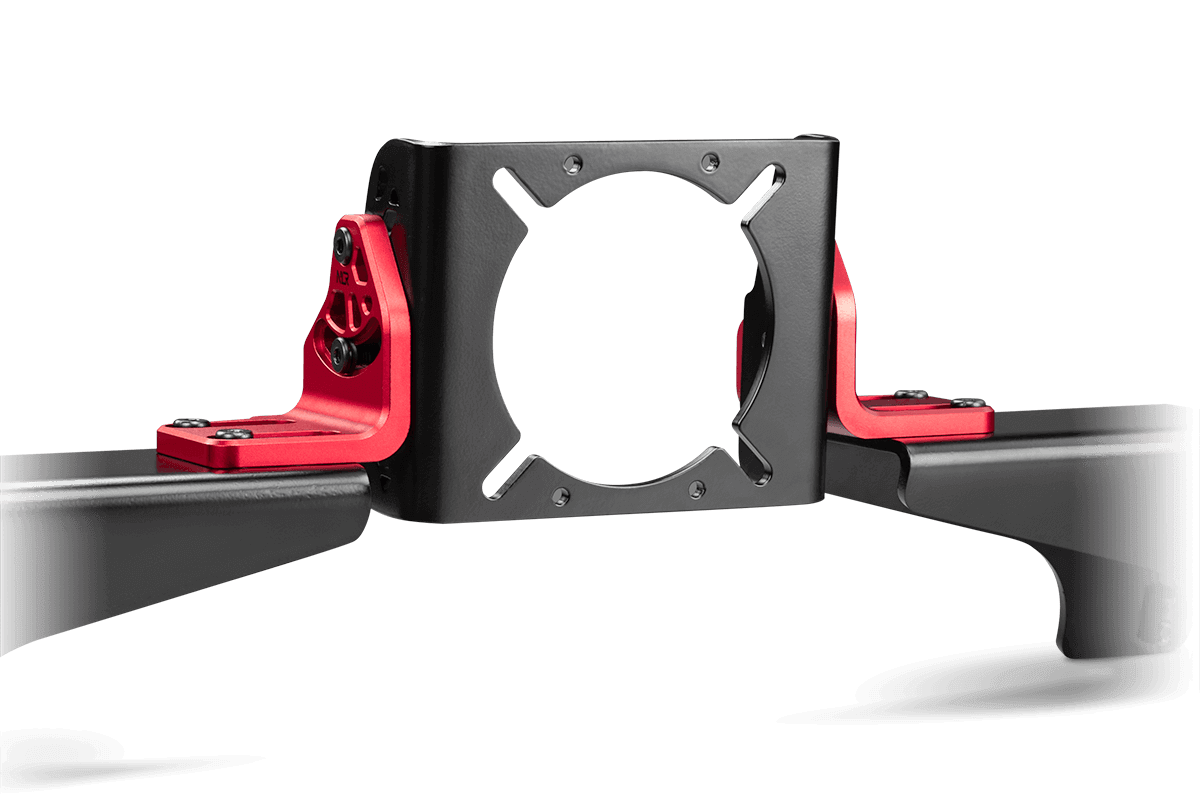

• Bespoke DD Mounting Solution: Includes a premium CNC-milled 6061 solid aluminum front and side mount. This single-billet system offers 70 degrees of tilt (40° down, 30° up), providing the most rigid and adjustable connection for elite Direct Drive wheelbases.

• All-In-One Multi-Position Cockpit: Switch quickly between authentic Formula and GT seating positions. The increased range in seat brackets, wheel, and pedal plates caters to drivers of all sizes and styles.

• Innovative Flex-Free System: The proprietary NLR Seat Sliding System and 5mm carbon steel seat brackets provide 98 adjustment options while completely eliminating the "play" found in traditional seat sliders.

• Premium Post-Anodized Carbon Grey: The aluminum profiles undergo a specialized chemical anodizing process that is scratch-resistant and visually stunning. Unlike standard profiles, even the ends and pre-machined holes are anodized for long-term protection.

• Universal Sliding Pedal Plates: Features two slotted 5mm carbon steel pedal plates with double precision folds. This design ensures maximum stiffness and easy distance adjustments for the industry's most demanding load cell pedals.

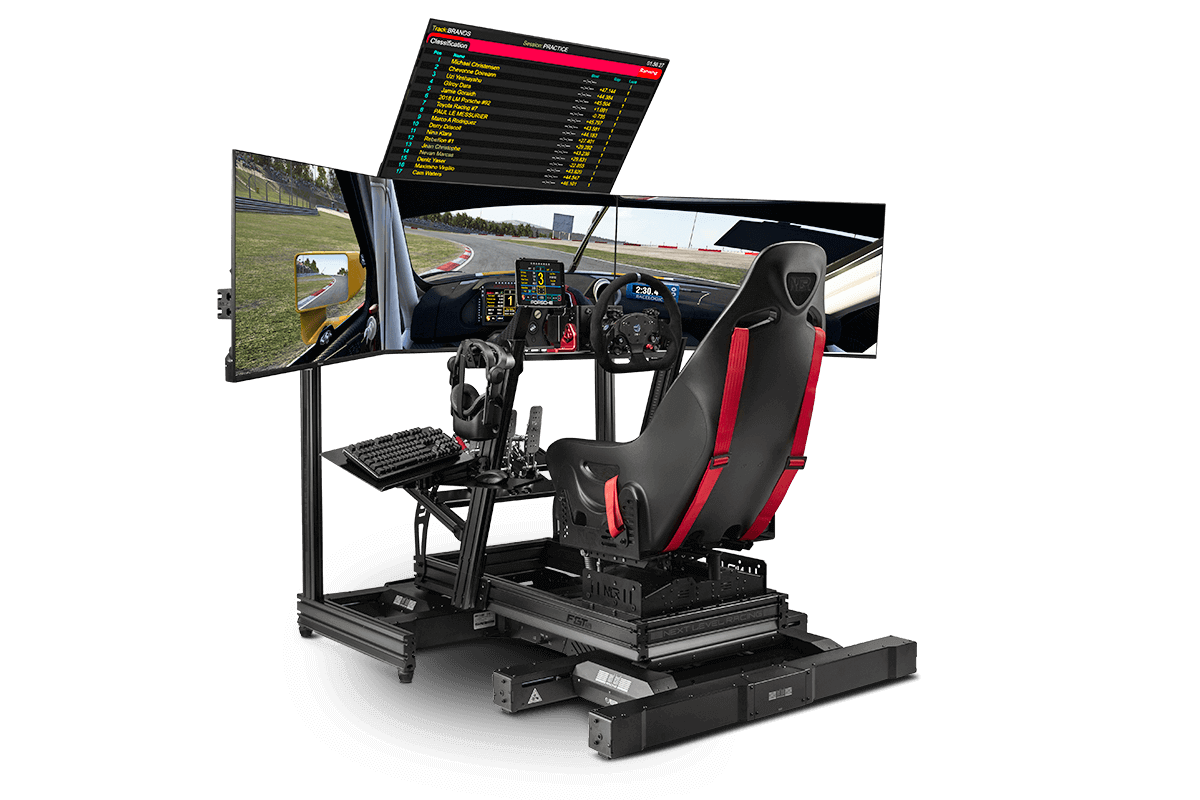

• Motion Ecosystem Ready: Designed for seamless integration with all Next Level Racing® Motion products. Pre-machined holes and included brackets allow the Motion Platform V3 or Motion Plus Platform to bolt directly to the frame.

• Refined Assembly: Precision-machined holes and custom black electroplated spring ball T-slot nuts make assembly faster and stronger, removing the need for fiddly industrial square brackets.

Direct Drive Compatibility

• Fanatec: DD1 / DD2 Podium Direct Drive

• Simucube: 2 Pro, 2 Sport, 2 Ultimate

• Simagic: Alpha / M10

• VRS: Directforce Pro

• Mige: 130 Motors

• Kollmorgen: AKM 52-53-54 (OSW and Leo Bodnar systems)

• Note: Bottom Mount Wheel Deck is not included in this edition.

Specifications

• Supported Height: 120 cm – 210 cm (4' – 6'9")

• Supported Max Weight: 150 kg (330 lbs)

• Construction: Custom 100mm x 40mm High-Grade Aluminum Extrusion

• Finish: Post-Anodized Carbon Grey / Black Electroplated Hardware

• Product Weight: 53 kg (117 lbs)

• Part Number: NLR-E003

What’s in the Box

• Next Level Racing® F-GT Elite Frame (Carbon Grey)

• CNC Direct Drive Front & Side Mount Solution

• 5mm Carbon Steel Seat Brackets & Flex-Free Slider

• Gear Shifter and Handbrake Support Plate

• Height-Adjustable Shock Absorption Feet

• Tool Kit Holder & Premium Ratchet Tool (M6 & M8)

• 8 x Custom Cable Management Clips

• Buttkicker® Gamer 2 Adaptor

• Safety Foot Step Plate

Why Choose the Front & Side Mount Edition?

If you are using a high-torque Direct Drive wheelbase, this is the version of the F-GT Elite you need. By mounting the wheelbase from the front or sides using billet aluminum, you maximize the mechanical leverage and eliminate the vibration or flex often associated with wheel plates. It is a visually stunning, industrial-strength masterpiece designed to help you shave tenths off your lap times.
